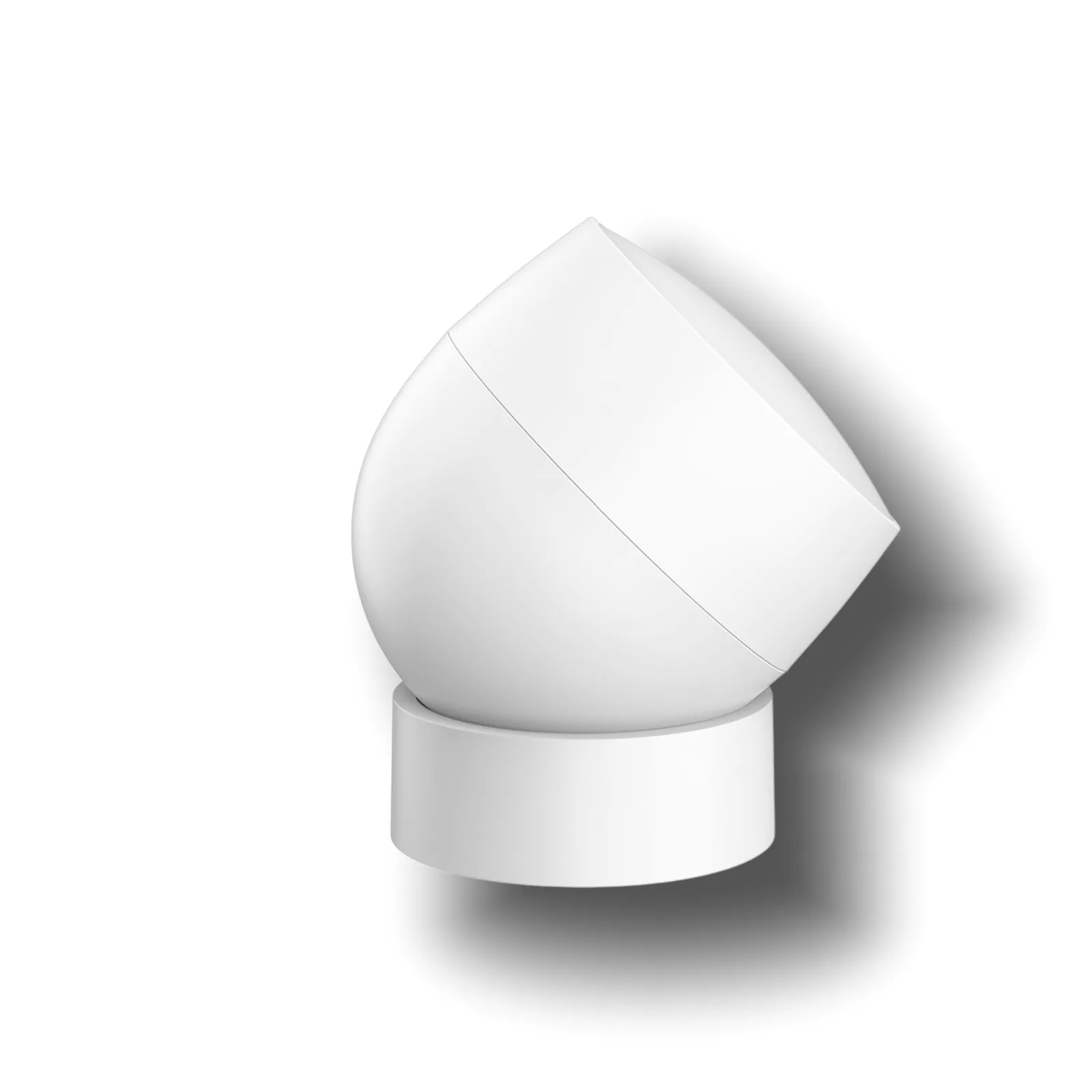

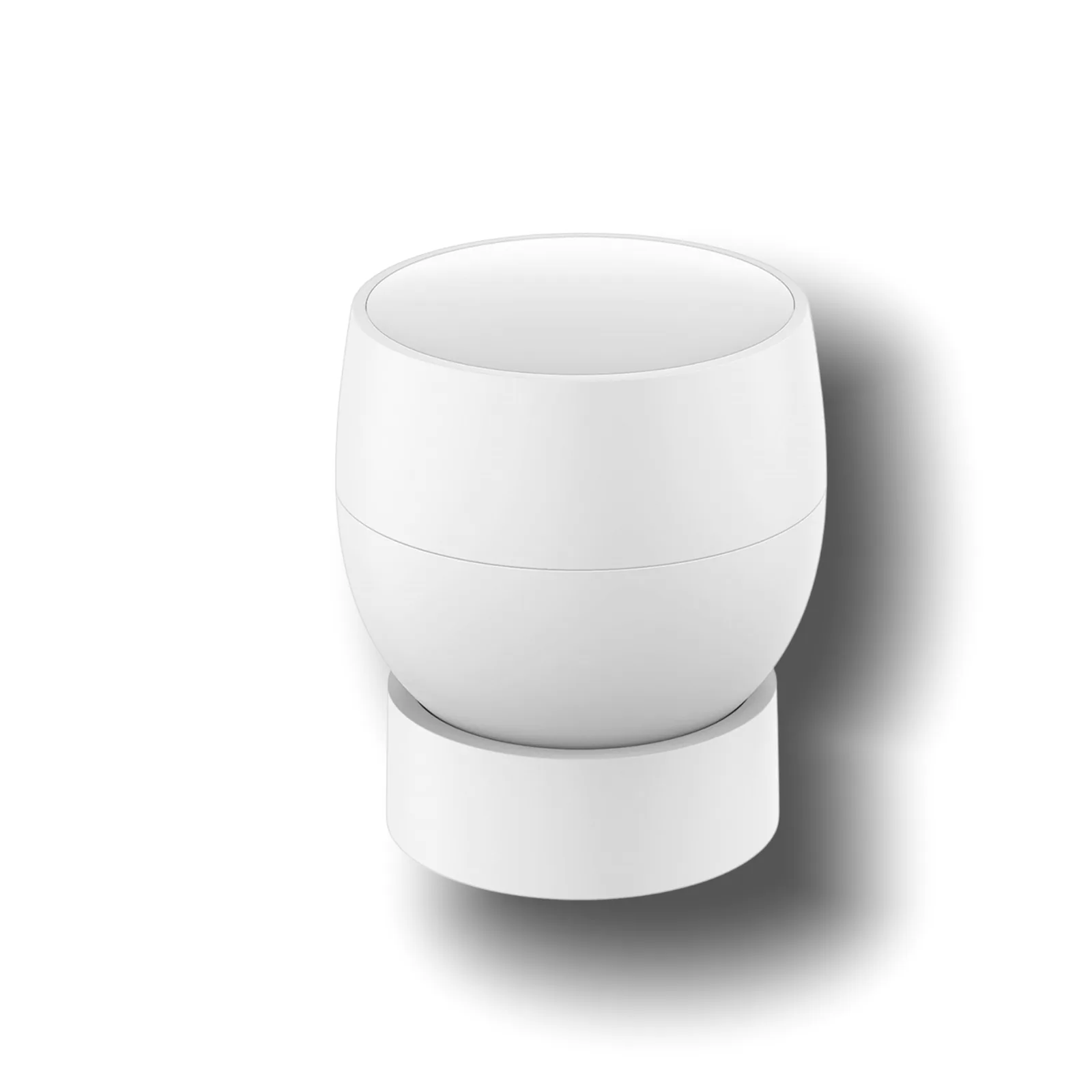

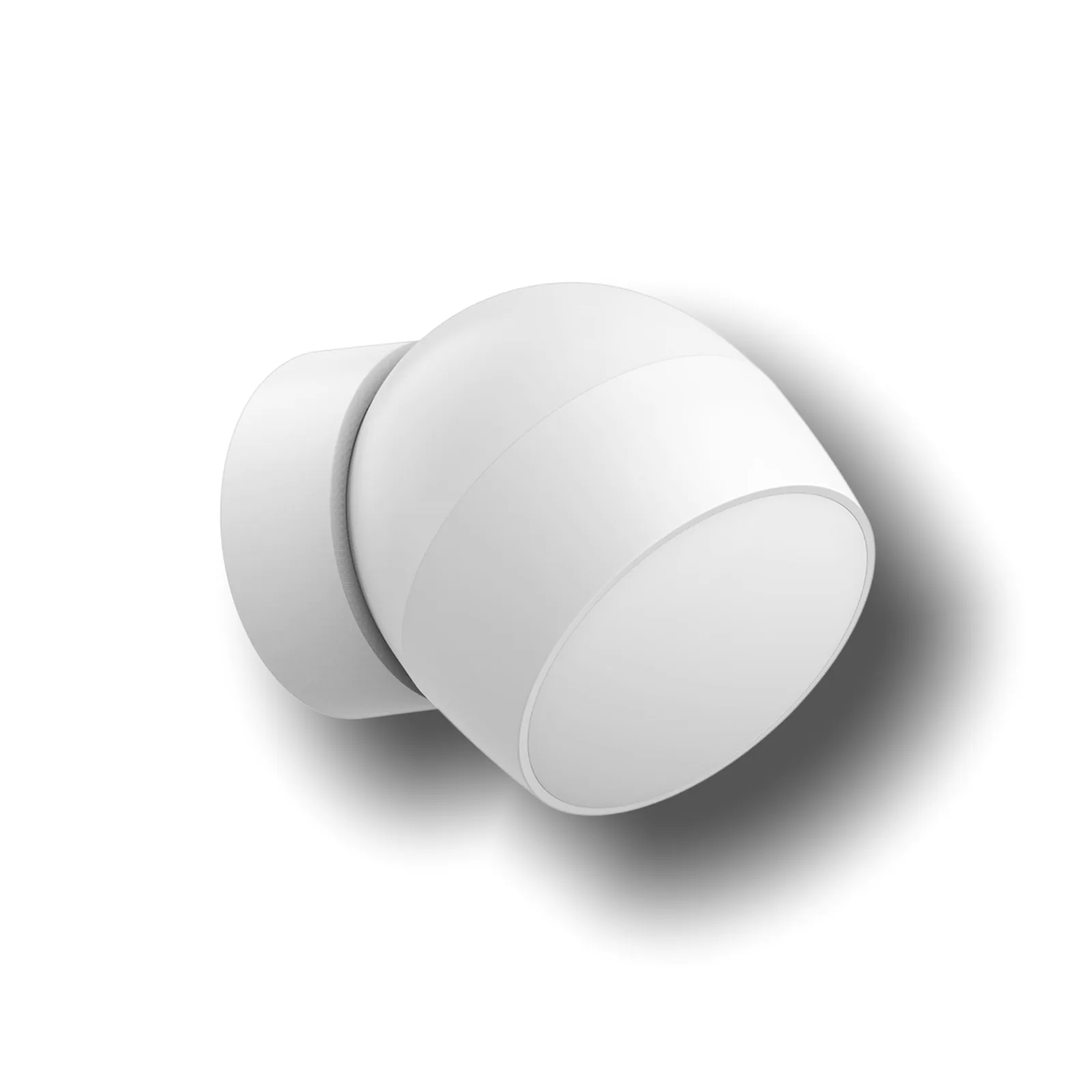

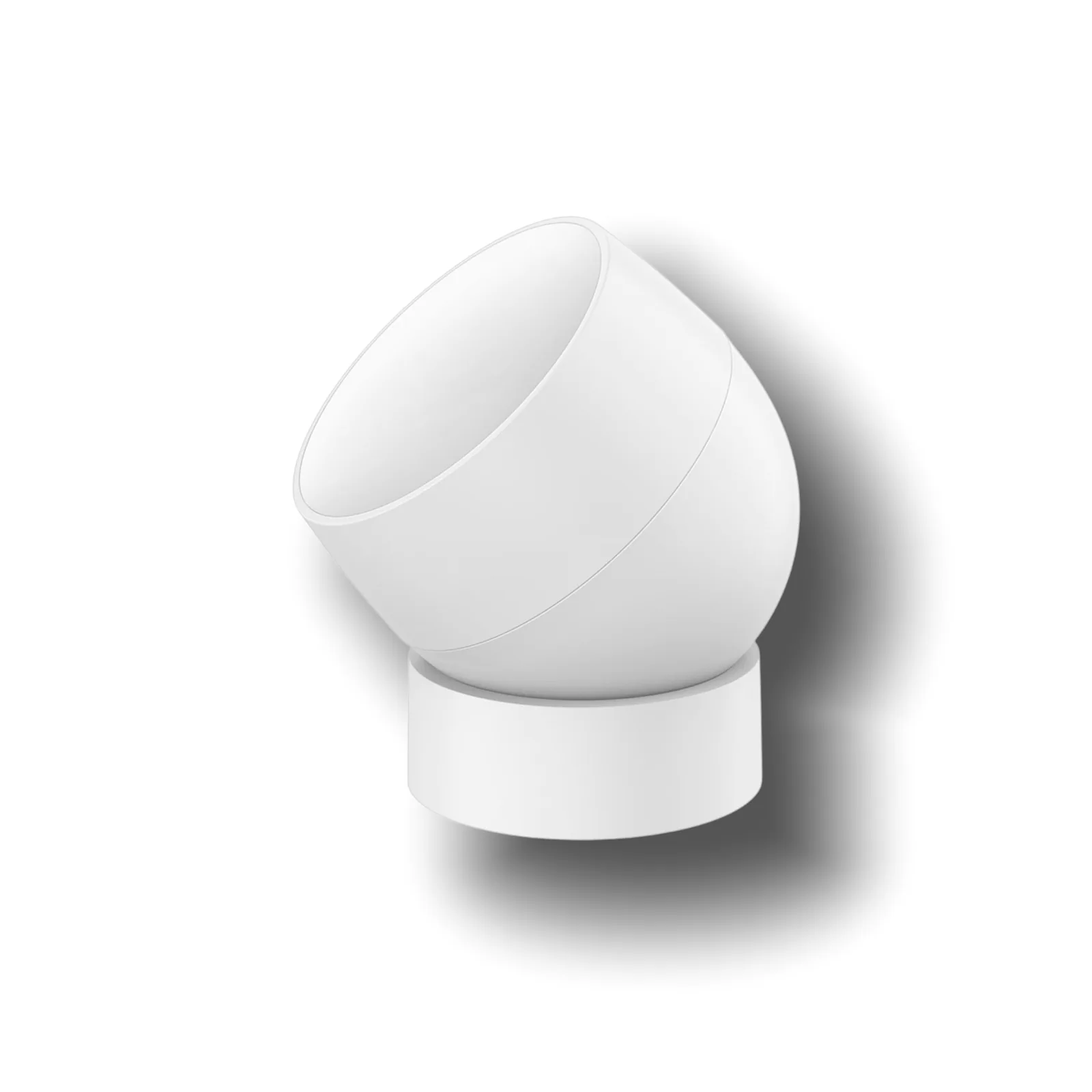

PIR Motion Sensor
Price on request
It detects people's movement by pyroelectric sensors and a new generation Fresnel lens to sense infrared light emitted by people.
With third generation Fresnel lens, the zone density has increased by 3.4 times;
With the imported quaternary pyroelectric sensor and intelligent temperature compensation algorithm;
Magnetic suction base design, 1 second installation, detection direction can be adjusted freely;
With ultra-low power consumption, it works with the gateway and supports linkage control and remote reminder.
Datasheet
Specifications, brochure and manual for the PIR Motion Sensor.
Features
- Wireless data transmission
- Periodic supervision
- Digital temperature compensation
- Low voltage reminder
- Low power consumption, long battery life
- Magnetic base, flexible and convenient installation
Parameters
- Power Supply: DC3V, 1×CR2450 battery
- Operating Temperature: -10℃ to 55℃
- Operating Humidity: ≤95% RH
- Communication: Zigbee 3.0 protocol, via gateway networking, 150m transmission distance (open area)
- Installation: 3M adhesive tape for wall mounting
- Housing Material: PC+ABS
- Dimensions: Φ40 mm × 48 mm
- Low Voltage Alert: Supported
- Standby Time: 1 year (30 triggers daily)
- Detection Range: 7 meters
- Detection Angle: 70°
- Temperature Compensation: Supported
- Button: 1 (for network pairing and test mode entry)
- Test Mode: Supported; automatically activates upon power-up, switches to normal mode after 5 minutes of no motion detection

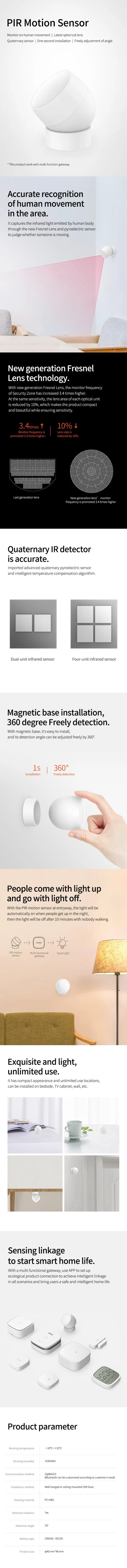

Brochure
Open a sheet to view it full size.
