Smart SecuritySmart Sensor

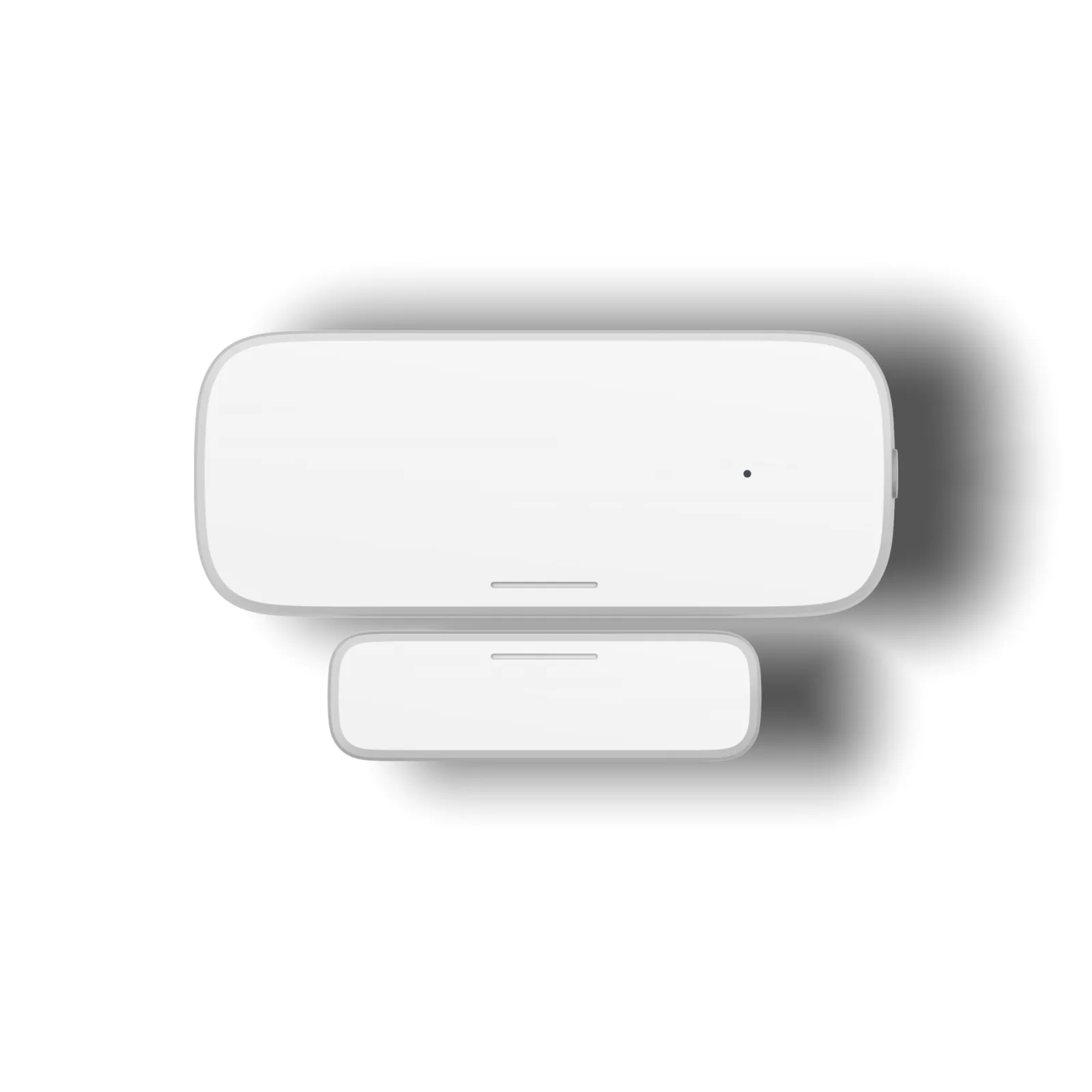

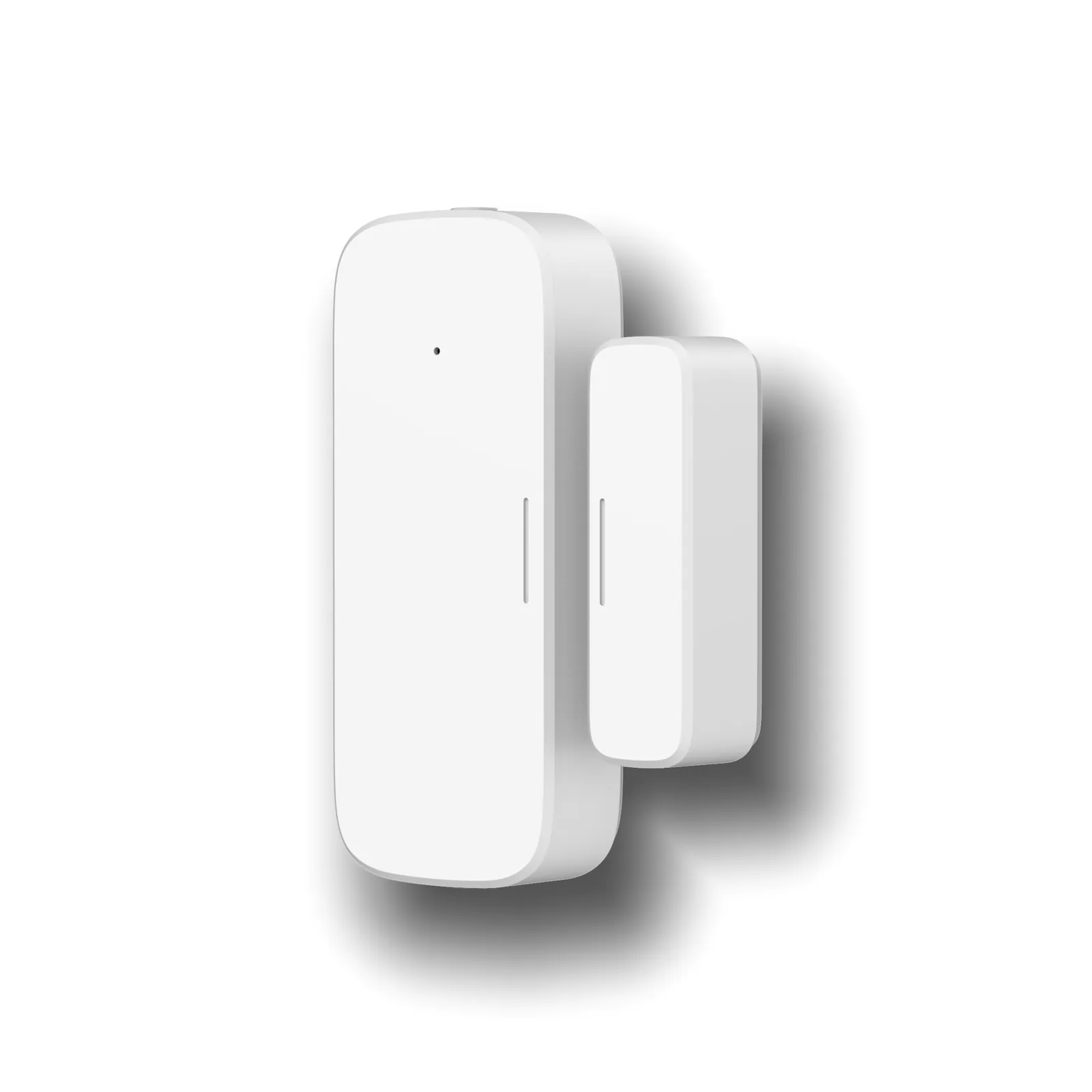

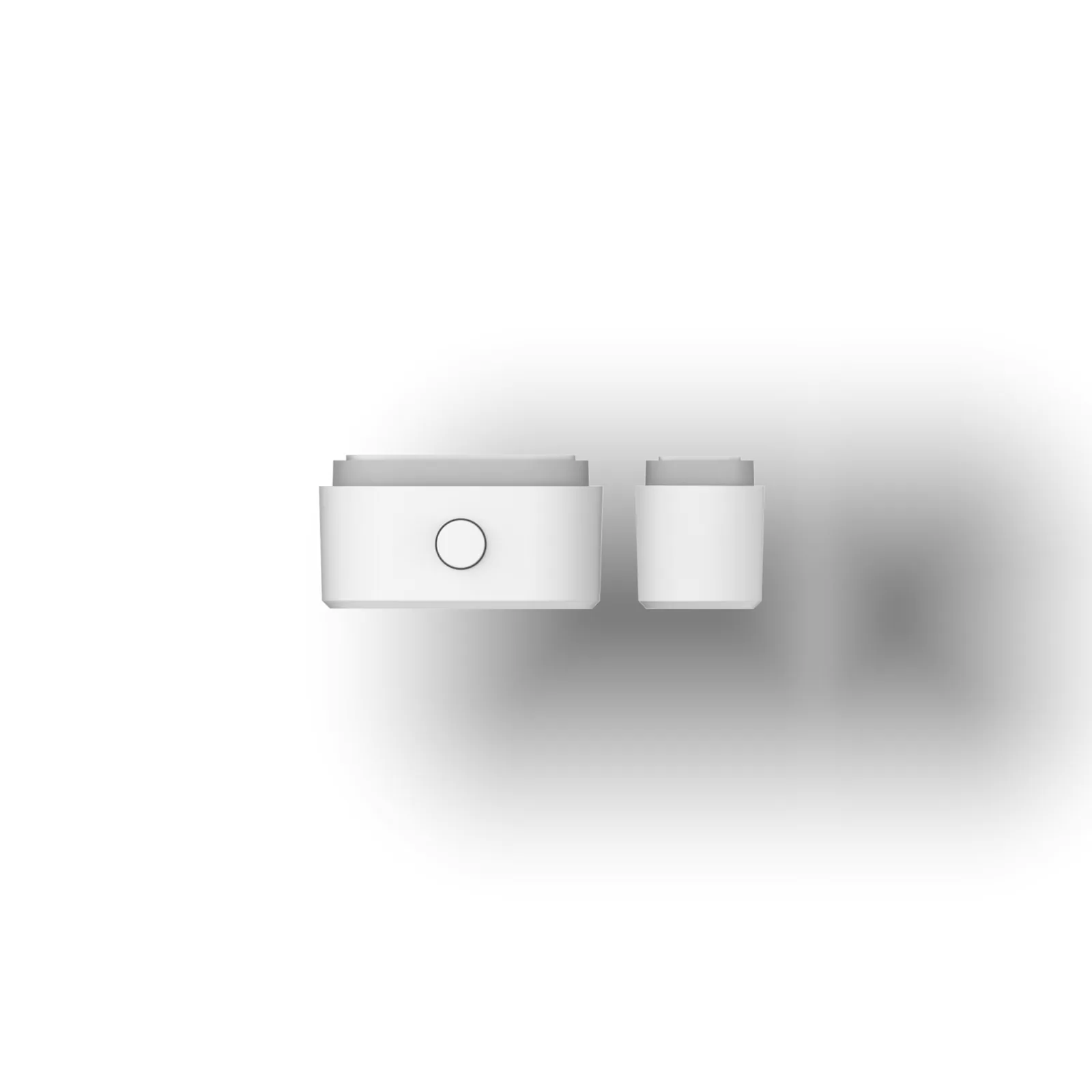

Door & Window Sensor
Price on request
It detects the opening and closing state of the door, window, and cabinet by the magnet's suction to the reed switch.
With an anti-tamper function, it will alarm when removed.
With low-power design, it will remind users to replace batteries at low voltage, 3M adhesive paste, easy to install;
It works with gateway, and supports linkage control and remote reminders.
Datasheet
Specifications, brochure and manual for the Door & Window Sensor.
Features
- Monito door & window's status
- Professinal anti demolition design
- Supports linkage control and remote reminder
- Air purifier will enter into standby mode when window is opened for ventilation
- User Off-Home Mode: Timely Intrusion Alert
- Ultra low power consumption
- Multi-scene application
Parameters
- Power supply: DC3V, CR1632 battery*2pcs
- Communication mode: Zigbee 3.0 protocol, networking through the gateway, transmission distance of 150m (open environment)
- Installation method: fix the door and frame with 3M glue and keep them in the same plane
- Support shell opening and demolition
- Support low voltage alarm
- Shell material: PC+ABS
- Operating temperature: -10℃ ~ +55℃,Working humidity: 5-95%rh
- Size：Main body54*22.2*12.5mm，Secondary body33.3*10.2*12.5mm
- Standby time: 1 year (30 triggers per day)

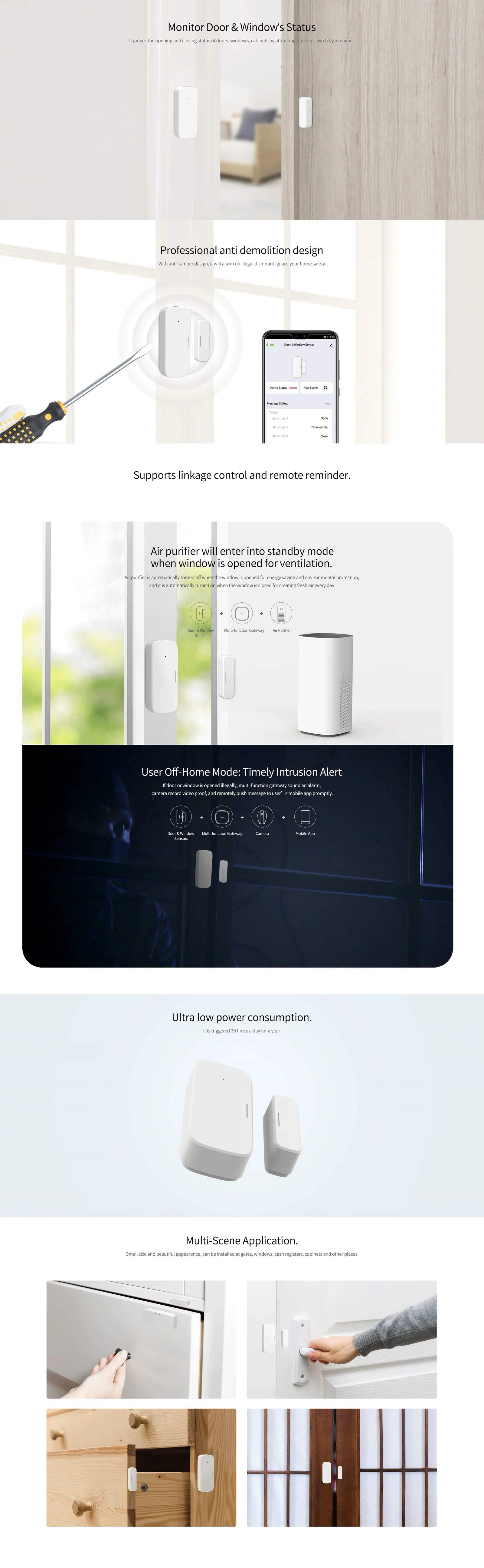

Brochure
Open a sheet to view it full size.
