Smart SecuritySmart Sensor
Gas Sensor
Price on request
It detects the concentration of natural gas to determine if there is gas leakage and sends an alarm through indicator lights and a high-decibel buzzer.
With a unique air flow window design to avoid direct damage to the core sensor such as oil, smoke, water vapor, etc., to ensure the product continues to work stably.
With the Wi-Fi communication protocol, it can be directly connected to the platform without a gateway and push alerts to the APP on a mobile phone for the first time.
It supports remote mute, local periodic self-test, and APP remote self-test to ensure the product is effective and reliable.
Datasheet
Specifications, brochure and manual for the Gas Sensor.
Features
- Unique air flow window design
- Double calibration precision monitoring
- Supports remote mute and remote slel-test
- 70db alarm sound
- Cooperates with other equipment to reduce danger
- Multi-scene application
Parameters
- Power supply mode: DC12V, external power adapter
- Communication mode: Zigbee 3.0 protocol, networking through the gateway, transmission distance of 150m (open environment)
- Detection gas type:CH4(Natural Gas)
- Key: one, self-check mute key
- Indicator light: one, red, green and yellow, indicating the working status
- Alarm concentration: 8%LEL
- Alarm concentration error: no more than 3%LEL
- Shell material: PC+ABS

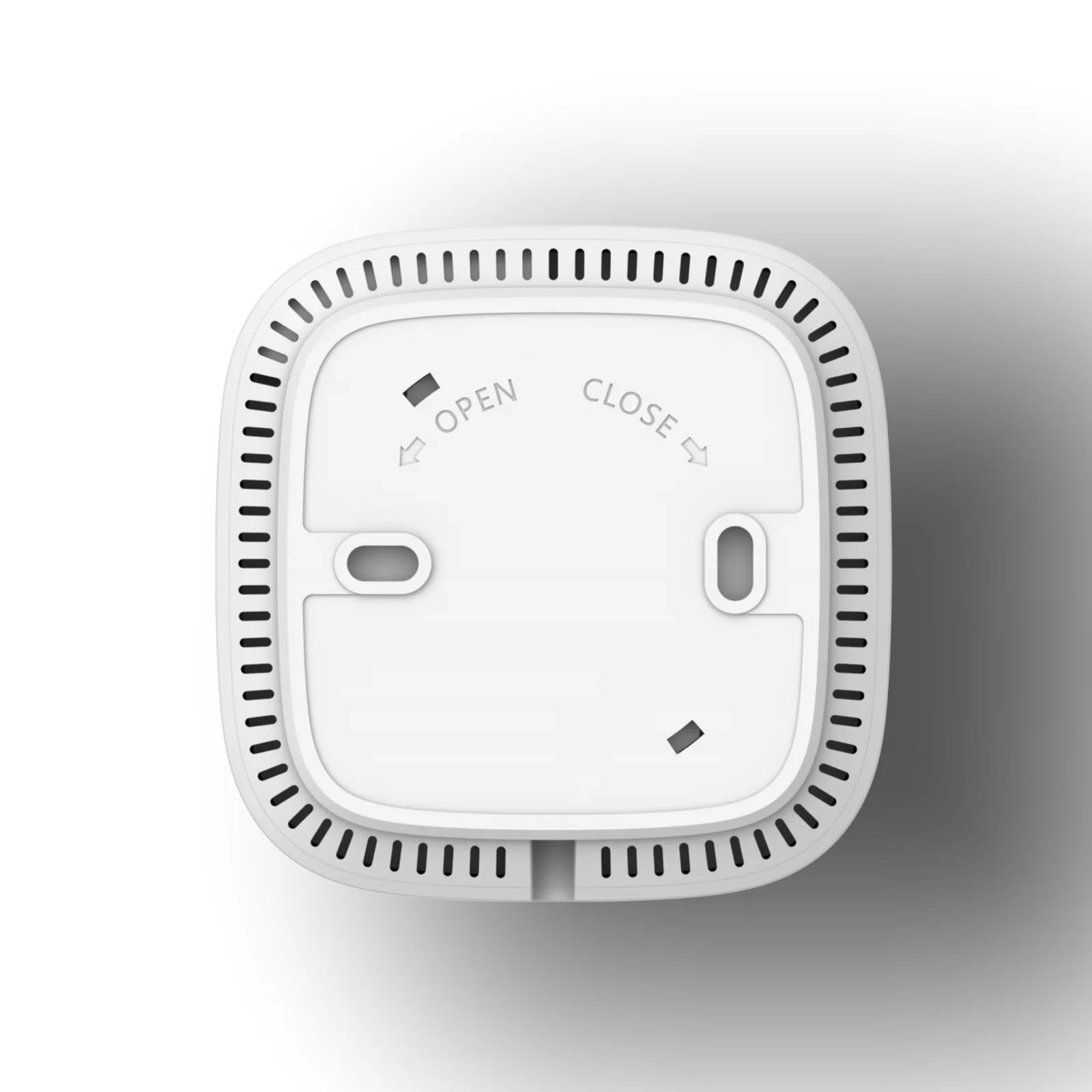

- Installation method: ceiling and wall hanging
- Other functions: regular self-inspection, remote self-inspection
- Alarm sound pressure: 70DB@1m
- Working temperature: -10~+55℃
- Working humidity: 5-95% RH
- Dimension: 66mm × 66mm × 29mm
