Knob Control Panel
Price on request

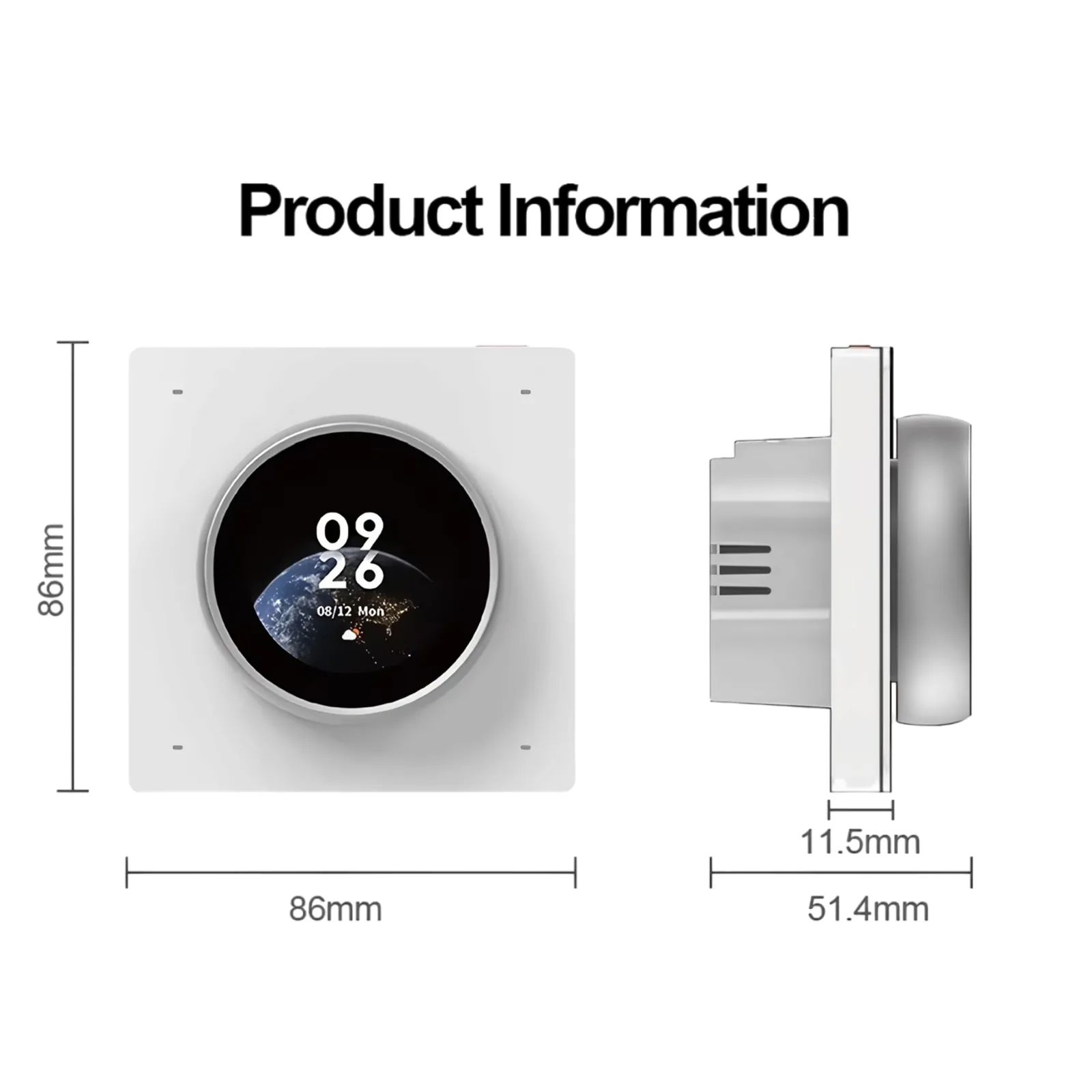

This Smart Knob Control Panel adopts the RTOS platform, integrates a 3-way relay, mainly provides switch in situ replacement, intelligent device control, and scene panel functions, standard 86 base, installed in the user's home 86-box, the user can manage and control the home device in the interactive way of knob, screens, buttons, and so on.
Datasheet
Specifications, brochure and manual for the Knob Control Panel.
Features
- Ultra-smooth Knob & Touchscreen: Precise control at your fingertips, delivering butter-tery-smooth rotation as fluid as water.
- 3-channel Relay & 4 Customizable Switches: Efficient control combining three relay circuits with four programmable physical buttons.
- Built-in Pomodoro Timer: Countdown alerts for optimized time management in daily tasks.
- Device & Scene Integration: Centralized smart device control for streamlined management.
- Next-gen IoT Chipset: Powered by a high-performance RTOS (Real-Time Operating System), ensuring rapid and stable response.
Parameters
- 1.6'' Knob TUYA Central Control Panel (RTOS System)
- UItra-Smooth Konb & Touch Screen
- 3-Channels Relay & Customizable Switches
- Built-in Pomodoro Timer
- Device & Max 10 Scenes Integration
- Input: 100-240VAC, 50/60Hz
- 3 Relays, Max Load: Single 200W, Total 600W
- Load types: FL, CFL, LED lamps
- Microphone*2, Loudspeaker*1, 1W
- Resolution 400*400, TFT Display, 1.6''
- Built-in Conformal Antenna
- Work Temperature: 0~40°C
- Work Humidity: 5~90%RH Non-Condensing
