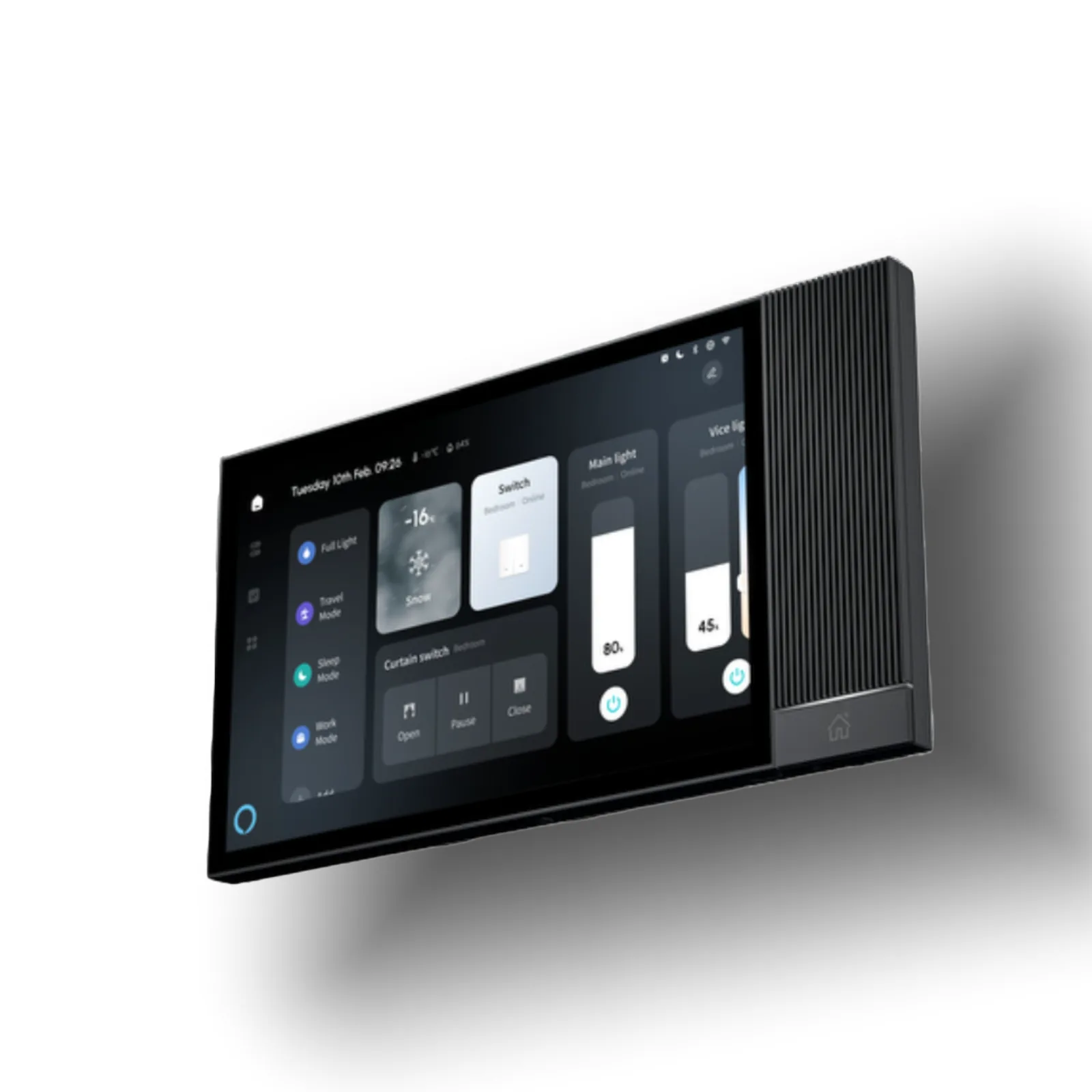

Control Panel 8 Pro
The Smart Control Panel 8 Pro, powered by Android, serves as a gateway, interactive hub, and scene control panel for the home. Installed in a standard 86 wall box, users can easily manage connected devices via touch or voice.
As the core of whole-home automation, the Control Panel puts control at your fingertips— playing music, activating lights and AC when arriving home, or switching to nighttime security with smooth, responsive interactions across scenarios.
Its 8-inch HD screen offers clear visuals, while built-in high-fidelity speakers and dual amplifier ports support immersive sound for any mood. Integrating with a voice assistant enables natural, hands-free control of the entire home, enhancing daily life with ease and quality.
Datasheet
Specifications, brochure and manual for the Control Panel 8 Pro.
Features
- Zigbee & Bluetooth Gateway: Zigbee and Bluetooth independent chips, integrate Zigbee and Bluetooth gateway functions, support Bluetooth BLE & BLE mesh sub-devices, and have edge capabilities for localized control.
- Device Control: Fully compatible device access and diversified control forms are compatible with almost all Tuya ecological devices.
- Scene Control: Custom physical buttons, screen interaction, and voice interaction can trigger scenes to meet different needs in life.
- iShare™Technology: In-depth customization of the interconnection center, support for IPC preview monitoring, video and voice calls, direct interconnection between central control and central control, as well as central control and APP.
- Rich Interface: A variety of base forms are supported. The standard base uses zero-fire wire wiring and supports dual relays, an RJ45 network port, RS485, dual amplifier ports, etc.
- Online Music: You can play music directly on the center control while supporting external Bluetooth speakers and background music speaker output, enjoying high-quality hi-fi sound.
- Easy To Install: Zero firewire installation with a standard plastic concealed box can complete the intelligent upgrade.
- Alexa Built-in: The product has a built-in Alexa Assistant that can check the weather, play music, control devices, and more in one sentence.
Parameters
- Operation System: Android11 System
- Login Method : Scan code to authorize login
- CPU Model: Quad-core ARM Cortex™-A55 RK3566
- Wi-Fi & Bluetooth:WiFi6 2.4GHz&5.8GHz, IEEE 802.11b/g/n,Bluetooth 5.2
- Zigbee & Bluetooth gateway function
- Main screen size: 8 inch
- Resolution: 1280*800
- RAM memory: 2GB
- ROM: 16GB
- Wired port: support
- Wireless Protocol : Wi-Fi 2.4GHz & 5GHz, Bluetooth, Zigbee
- Size:127.5*233.5*38mm
- Built-in speaker:2W
- Output Speaker Power: 2X30W
- Output impedance: 8Ω,
Brochure
Open a sheet to view it full size.
