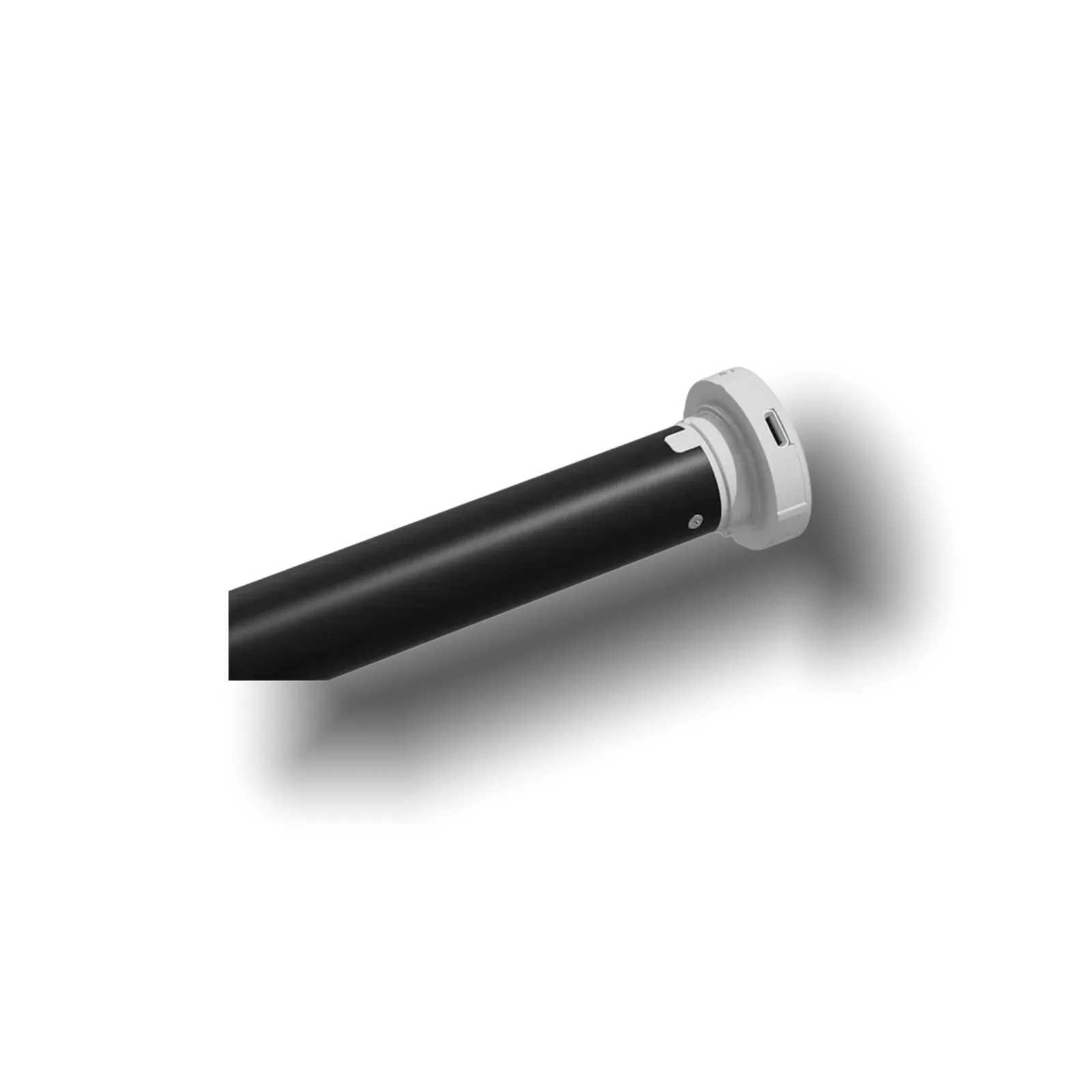

Tubular Motor
Smart Control with Multiple Options: This Tuya Zigbee IoT device offers users various control modes, including app, voice, RF, percentage, timer, and manual control, ensuring seamless and convenient operation.
Wide Compatibility: The product is designed for general windows with a length of less than 2.5 meters and 38mm tube roller blinds, making it suitable for various window types, including French windows.
Energy Efficiency: With a rated voltage of 100V~240V and no battery requirement, this smart roller blind motor reduces energy consumption and provides reliable operation.
Durable Construction: The device features a sturdy aluminum alloy material with a rotor diameter of 25mm and a rated torque of 2 Nm, ensuring long-lasting and stable performance.
Multi-Functional: The product can be used in various settings, such as offices, bedrooms, living rooms, kitchens, and more, providing users with a versatile and convenient solution for their window treatments.
Datasheet
Specifications, brochure and manual for the Tubular Motor.
Features
- Wireless control: RF433, WiFi, Zigbee, Bluetooth mesh, Matter
- Smart home control system
- Voice control connects with Amazon Alexa, Google Home and so on
- Support App control. percentage control, timer control
- Power off route and position memory function
- Reversing function for direction
- Easy to set the top/ middle/ down position limit
- Wide voltage power supply
- Suitable for: Compatible with 38mm tube roller blinds.
- Smart Blind Motor 25mm Tubular Motor Alexa with 38mm Tube Curtains Motorized Customized
Parameters
- Receiving Frequency: 433.92MHz
- Torque: 2N.m
- IP Class: IP44
- Rated RPM: 25RPM
- Rated Power: 30W
- Rated Current: 0.13A
- Rated Frequency: 50/60Hz
- Rated Voltage: 100～240V AC
- Max load (use with 38mm tube): 10KG
Brochure
Open a sheet to view it full size.
