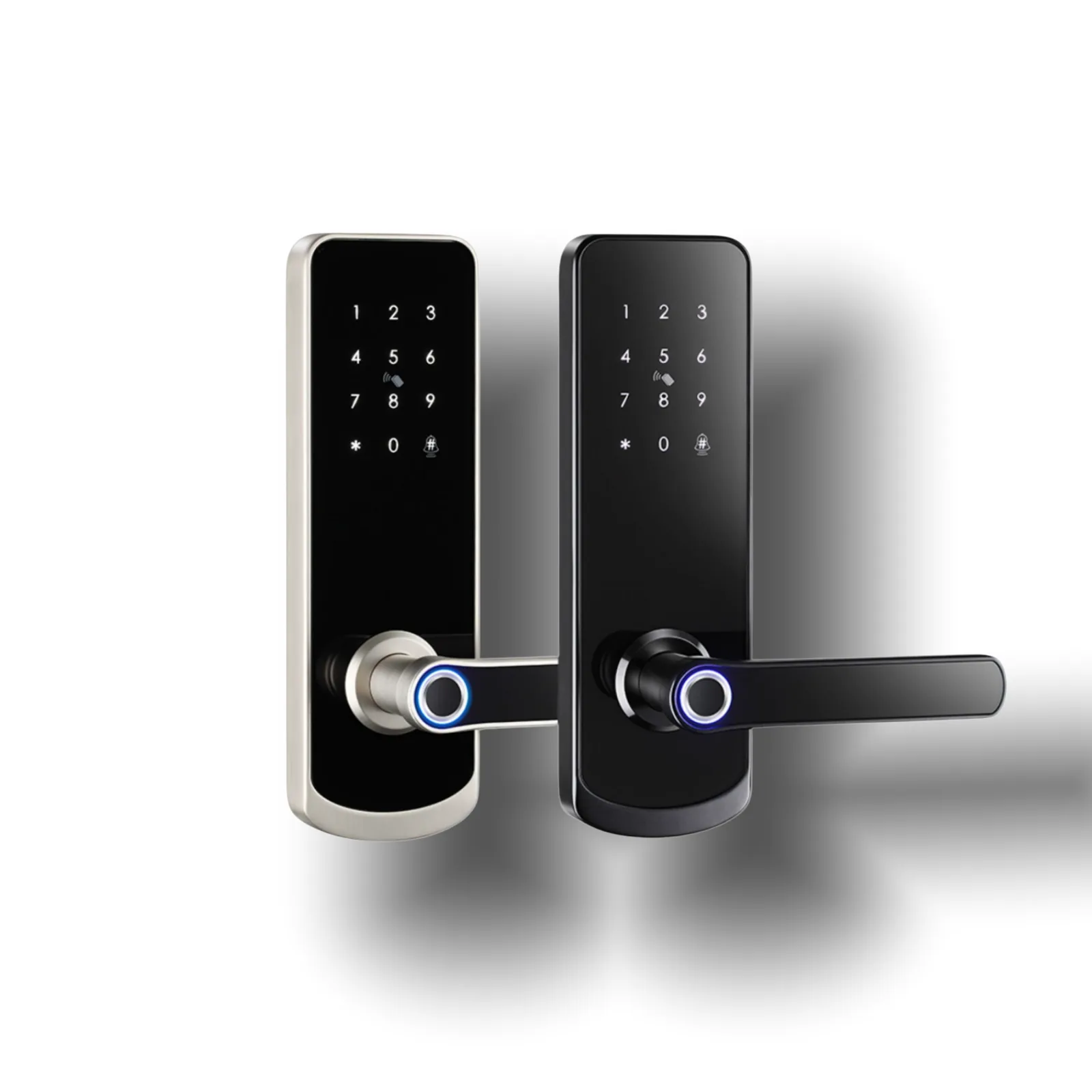

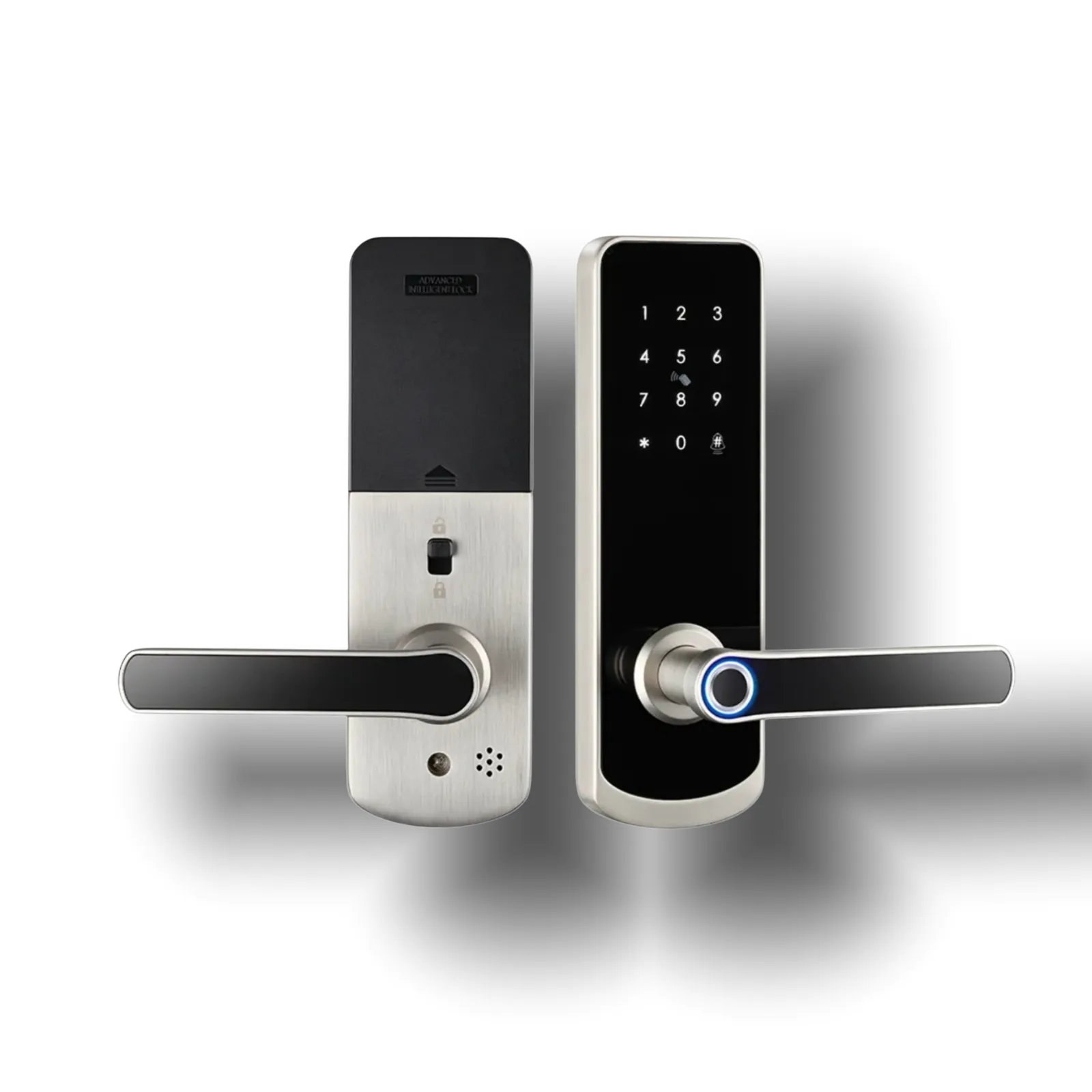

Smart Door Lock
Built-In Doorbell Function: Visitors can press the bell outside to send a real-time notification to the owner's mobile app.
5 Secure Unlocking Methods: Biometric Fingerprint Recognition; Tuya Smart App Control; Custom Passcode/PIN; RFID Card; Physical Backup Key.
Temporary Password Generator: Automatically generates temporary passwords that expire after use, preventing unauthorized access.
Remote Management via App: Control lock settings and permissions in real-time. View detailed access history (time, user, and method). Receive instant security alerts on your phone.
Advanced Security Technology: Military-grade encryption for WiFi and app connectivity. Tamper-proof design with anti-pry alarm.
Datasheet
Specifications, brochure and manual for the Smart Door Lock.
Features
- Fingerprint Recognition: High-precision sensor with a virtual recognition area to prevent accidental touches. Fast response time using WIBBLE FUSG Sensor technology for enhanced speed.
- Password Unlocking: Anti-peeping virtual password: The input interface randomly generates virtual digits to obscure the real password trail.
- Temporary password support: Customizable validity period and usage count, ideal for guests or cleaning services.
- IC Card Unlocking: Designed for seniors and children, eliminating the need for complex operations.
- Mechanical Key Backup: Emergency unlocking assurance with Open 0 Type design.
- Tuya Ecosystem Compatibility: Supports tuya_wizi/tuya_waki protocols for integration with smart home devices (e.g., lighting and security systems).
- Remote Control: Manage the door lock via a mobile app (remote unlocking, access logs, and temporary password issuance).
- Doorbell linkage (Door Bell Notification): Triggers cameras or lighting upon activation.
- Multi-Protocol Support: 5G/WiFi/Zigbee tri-mode networking ensures low latency and stability with Fast Network technology.
- Cloud Management: Encrypted command transmission (Cloudy technology). Supports remote firmware updates and data synchronization.
- Abnormal Status Alerts: Notifications for tampering attempts, low battery, and multiple incorrect password entries.
- Anti-Hijacking Mechanism: Enter random numbers to confuse onlookers (e.g., hiding password 895134 within a virtual keypad 1235689).
- Physical Security Redundancy: Concealed mechanical keyhole to prevent technical unlocking methods.
Parameters
- Aluminum alloy handle and panel, TUYA Wi-Fi/ZIgbee
- Acrylic reader with 12 digits passcode
- APP/Password/Fingerprint/Card/Mechanical Key/NFC
- Emergency key for back up use

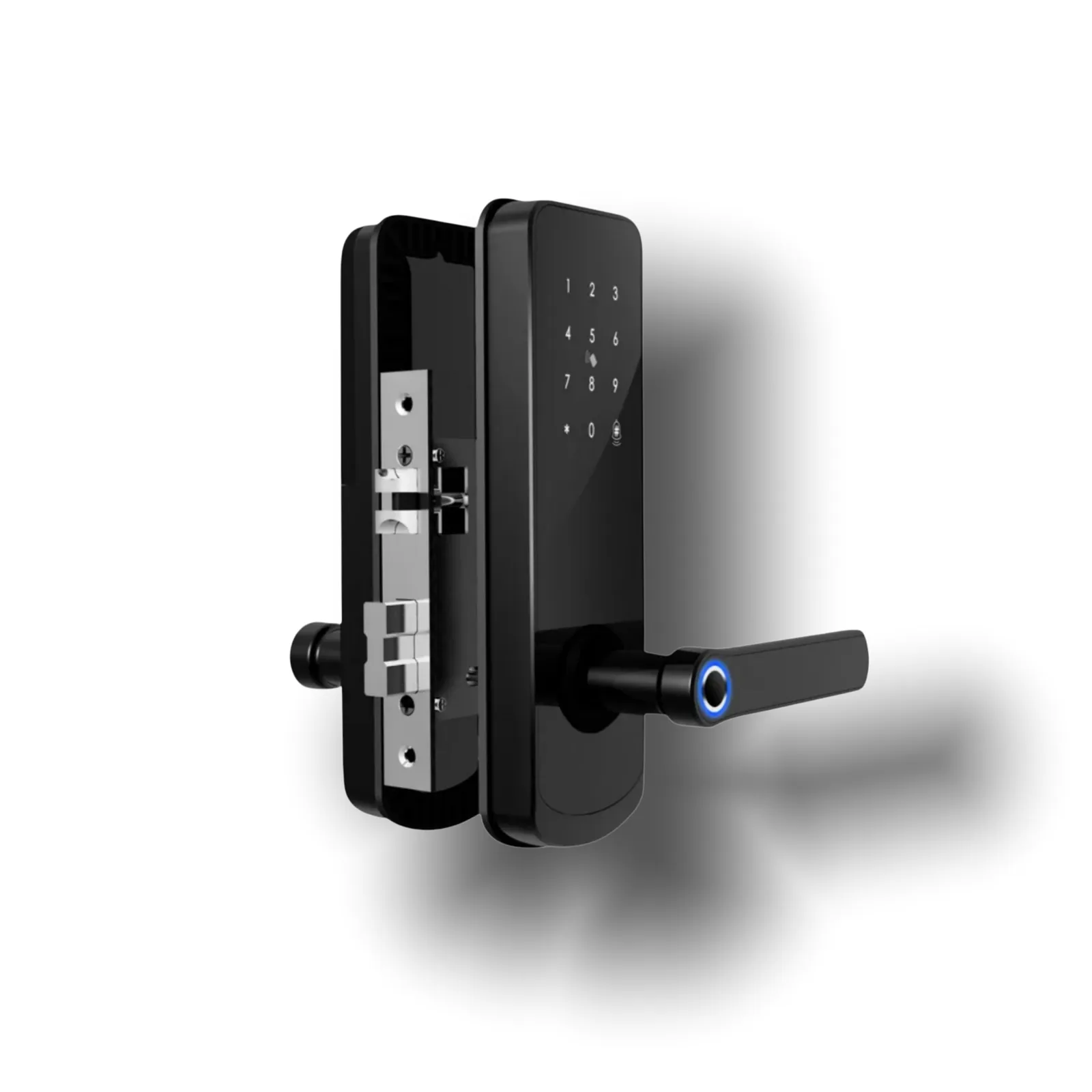

- Works with single latch or 5050/5072/4585/6085 Mortise
- Widely used for wood door or replace the knob locks
- Material: Aluminum alloy
- Color: Black/Silver
- Cylinder: C-Level
- Applicable Door Thickness:35-65mm
- Emergency Supply: Type-C
- Working Environment: Temperature -20°C～55°C, Humidity 10%~95%RH
- Size: 76*234*25mm

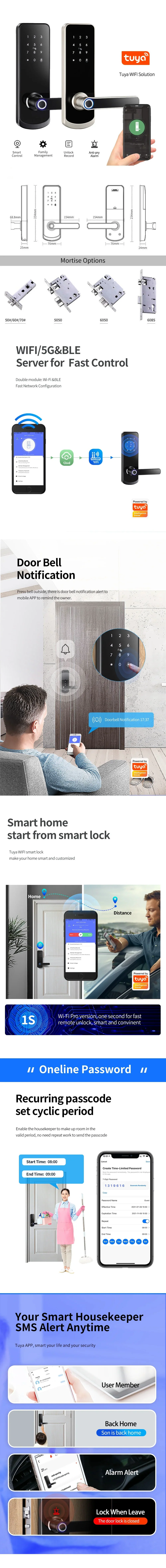

Brochure
Open a sheet to view it full size.
