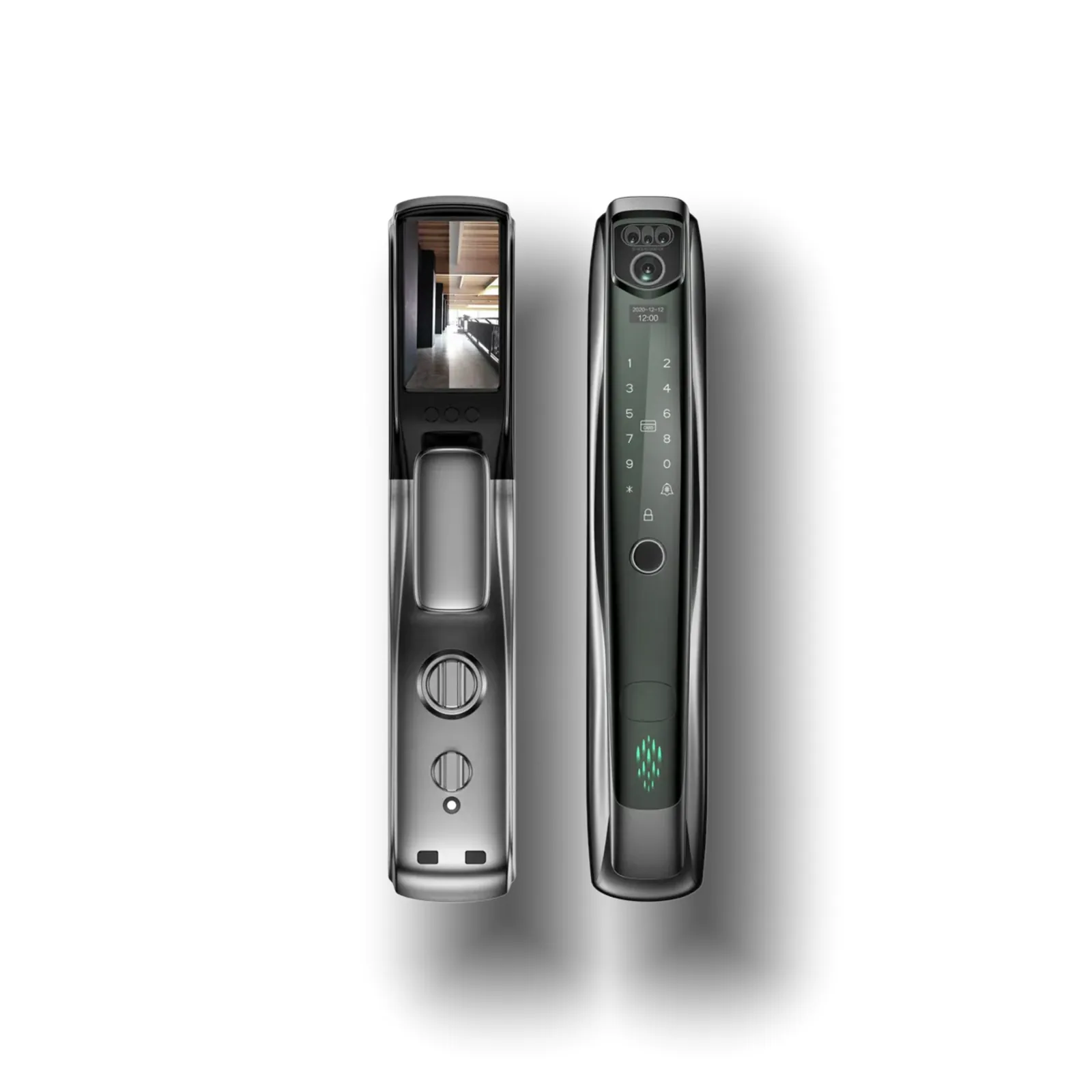

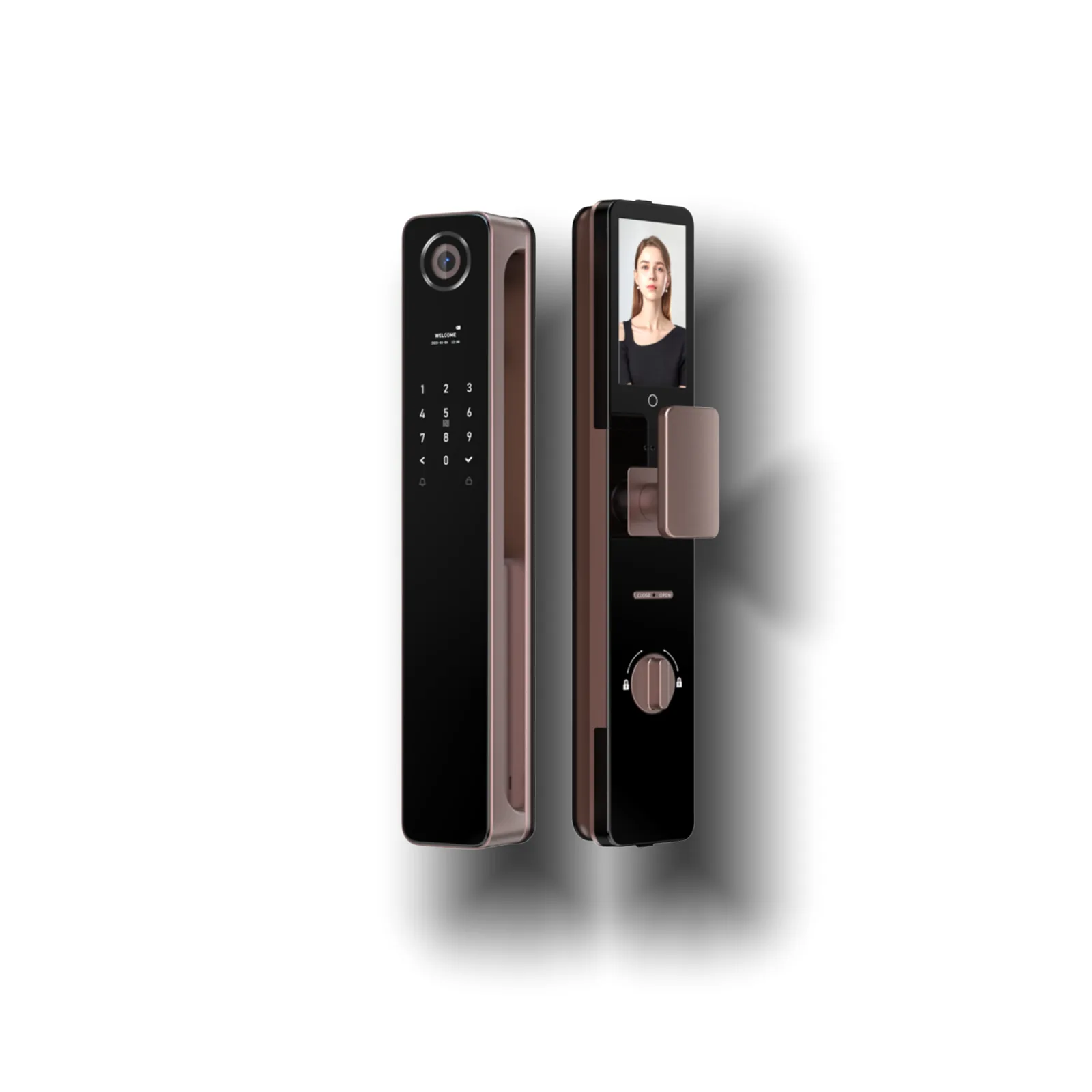

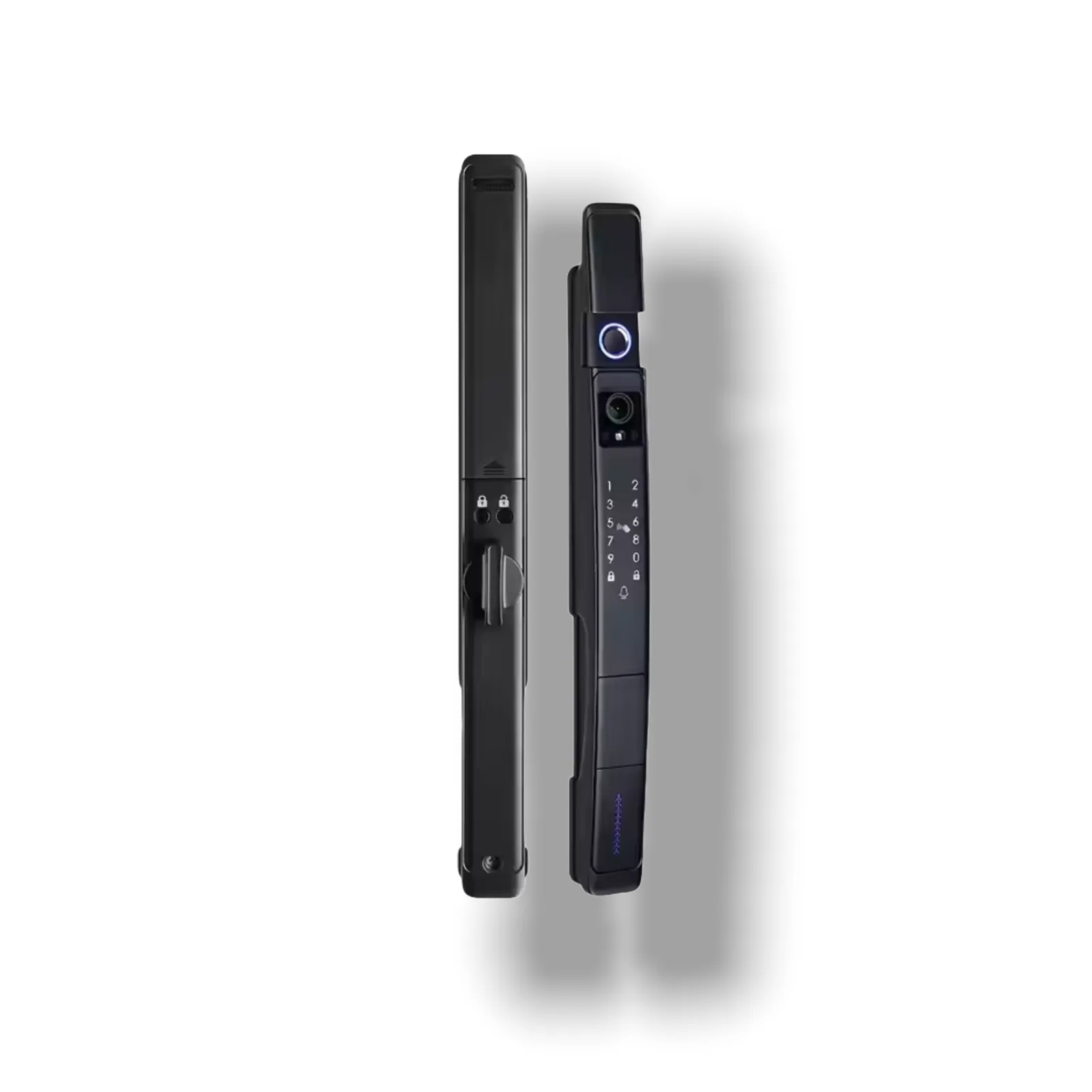

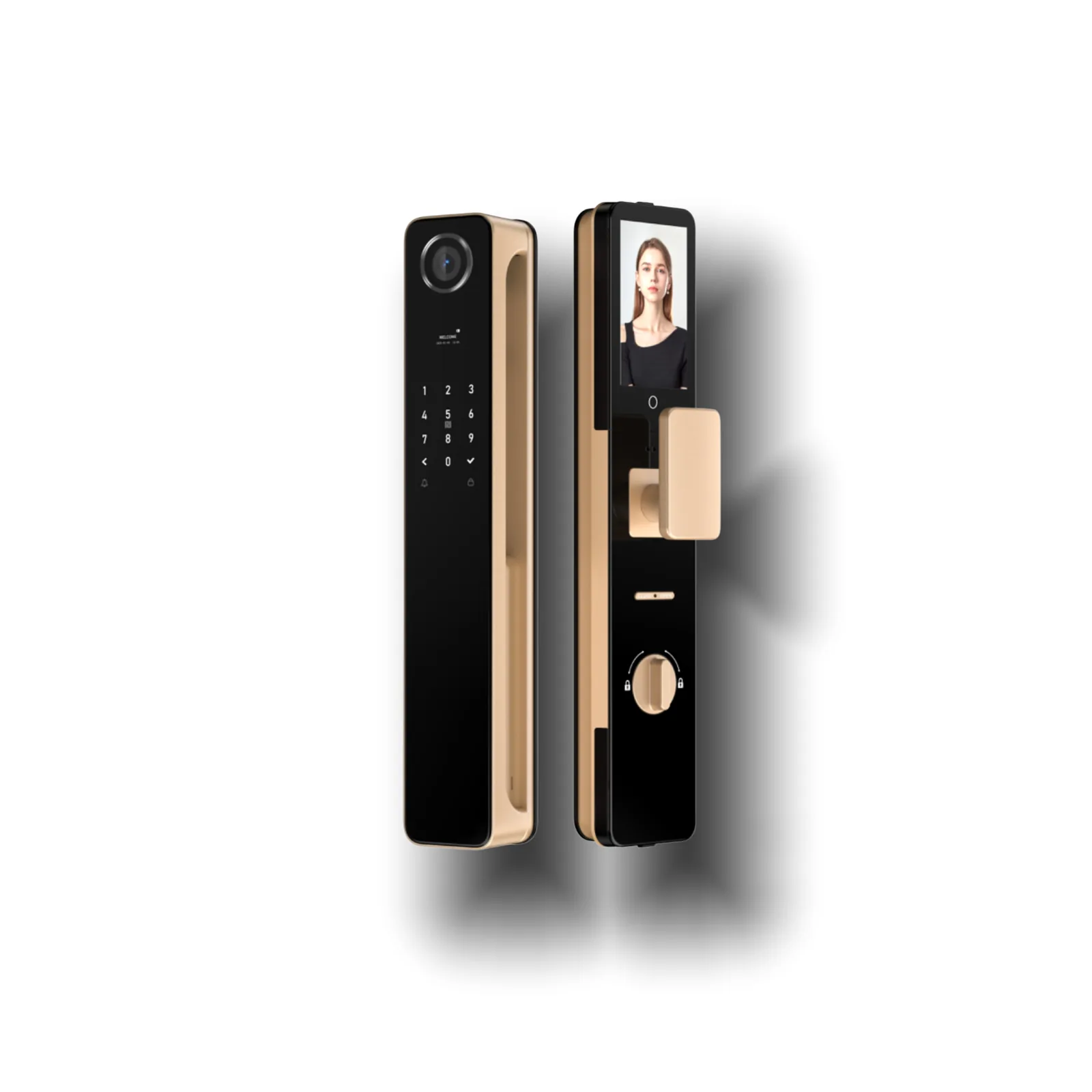

Smart 3D Face Recognition Lock
The product is a cutting-edge electronic door lock that integrates advanced biometric technology with smart home connectivity, designed for modern households and commercial spaces.
Featuring 10 unlocking methods (including 3D structured-light facial recognition, palm vein scanning, fingerprint, PIN code, IC card, etc.), it enables keyless, secure access.
Equipped with a 5-inch HD touchscreen for real-time video intercom and remote management (via Tuya App), it is powered by dual lithium batteries (8900mAh total) for extended operation. Its robust metal construction, anti-tamper alarms, and error-triggered lockout ensure comprehensive physical and digital security.
Datasheet
Specifications, brochure and manual for the Smart 3D Face Recognition Lock.
Features
- 3D Facial Recognition:
- Milliseconds response time with infrared night vision.
- Resists spoofing via photos/videos; adapts to glasses/makeup.
- Palm Vein Authentication:
- Contactless, hygienic, ideal for children/elderly users.
- Fingerprint Sensor:
- Stores up to 100 fingerprints with high-precision scanning.
- Anti-Peeping PIN Code:
- Enter disguised passwords (e.g., XXX123456XXX) to prevent shoulder surfing.
- Emergency Overrides:
- Morse Code Dial: Mechanical 6-digit input when batteries deplete.
- Type-C External Power: Instant unlock via portable charger.
- Active Protection:
- Tamper alerts, stranger detection with snapshots, and 3-fail lockout.
- Tuya App Integration:
- Real-time notifications for doorbell rings/unlock logs.
- Dual-mode WiFi 2.4GHz or Zigbee (gateway required).
- HD Intercom Screen:
- 5-inch display for live outdoor monitoring.
- Voice Guidance:
- Step-by-step audio instructions.
- Dual-Battery System:
- Hot-swappable 5000mAh + 3900mAh batteries with low-power warnings.
- Auto-Lock Customization:
- Adjustable delay (10/15/20/25 seconds).
- Reversible Installation:
- Supports left/right-handed door setups.
- Motor Torque Adjustment:
- Low/Medium/High settings for varied door weights.
- Data Logs:
- Tracks 100 user profiles and access records.
Parameters
- Material and Craft: Aluminum alloy; Baked Painting Spraying process
- Applicable Door Type: Wooden Door, Metal Door
- Applicable Door Thickness: 45 - 120mm
- Core Unlocking Methods: 3D Face Recognition, Palm Vein Recognition (Laser Reader)
- Other Unlocking Methods: Fingerprint (160 * 160 Semiconductor sensor), Password (supports 32-digit void code), Temporary Password, Key (C-Level Lock Cylinder), Type-C Emergency Power Supply
- Smart Features: Automatic Locking (Three-axis Gyroscope Sensor), Remote Monitoring, Proximity Induction
- Network Mode: WiFi
- Intelligent Platform: Tuya APP; Supports Smart Home ecosystem integration
- Password Quantity: Stores up to 100 passwords
- Power Supply: 7.4V; Two Lithium Batteries with a total capacity of 8900mAh
- Operating Environment: Temperature: -20℃ to 85℃; Humidity: 0 to 93% RH

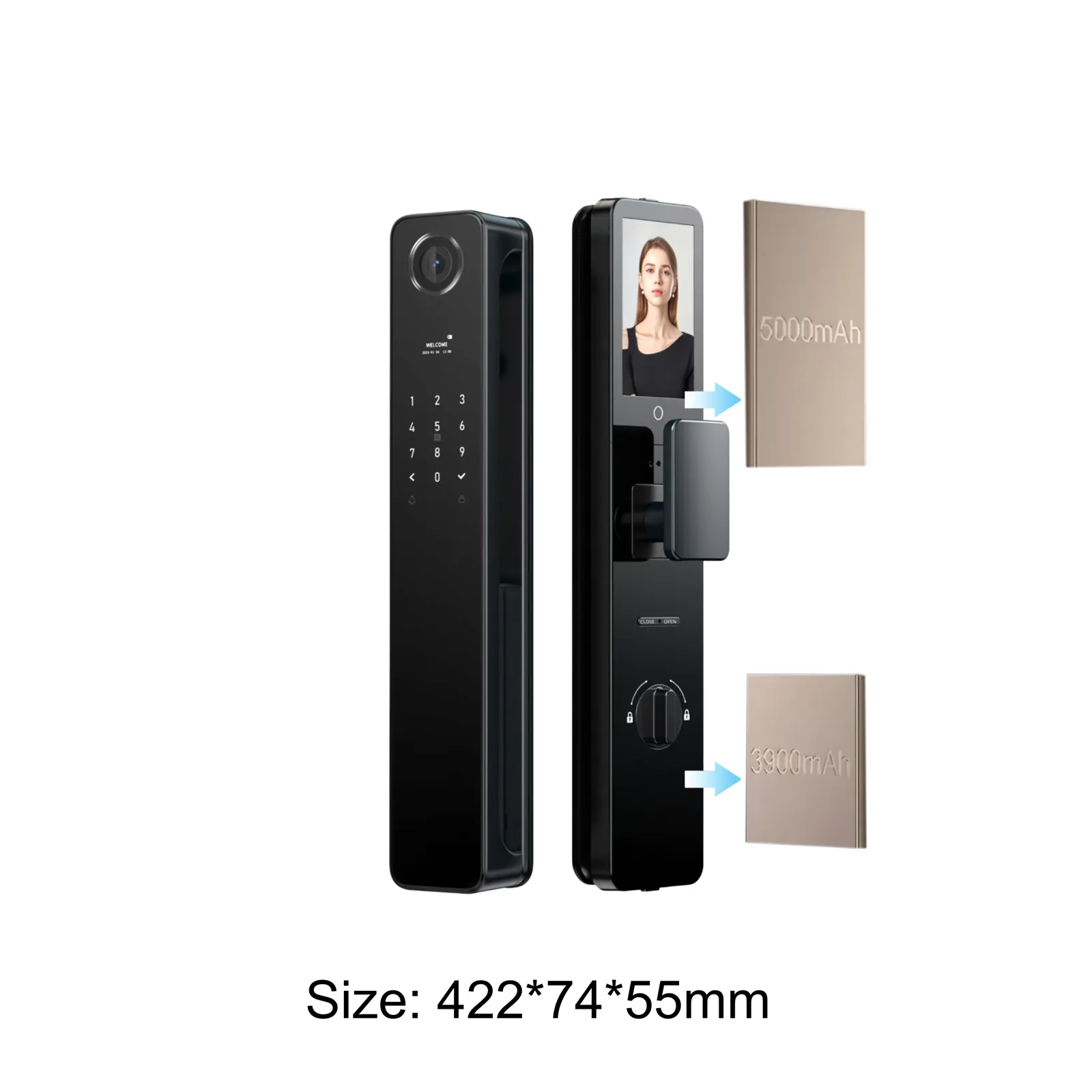

- Size: 422mm * 74mm * 55mm
Brochure
Open a sheet to view it full size.
Product Manual
Open a sheet to view it full size.
